Copper Conductor Instrumentation Cable / 2 Wire Twisted Pair Cable BS 5308

Name: Copper Conductor Instrumentation Cable 2 Wire Twisted Pair Cable BS 5308
Brand: YIFANG
Price: 0.1 USD

China Copper Conductor Instrumentation Cable / 2 Wire Twisted Pair Cable BS 5308 wholesale

Brand Name : YIFANG

Model Number : One pair/ Two pairs and above

Certification : ISO9001, ISO18001, OHSAS

Place of Origin : CHINA

MOQ : 500meters

Price : USD0.1/m to USD 25/m

Supply Ability : 5000km per week

Delivery Time : 3-20 work days

Packaging Details : Cable can be supplied in any length required.

Conductor : Copper

Armoured : Steel wire/ Steel tape

Insulation : PVC

Rated Voltage : 600/1000V

Sheath : PVC

Application : Reducing interference

Contact Now

600 / 1000V PVC Insulation Copper Conductor Instrumentation Cable

Instrumentation Cable:

1. Professional manufacturer
2. Standard: BS 5308
3. the best price quality & service.

Application:

Instrumentation cable can be used in interconnection of process control, communication & panel control
systems like oil exploration, cement, paper, steel, power generation and others.

Specifications:

Conductor	Class 5 flexible plain copper
Insulation	PVC / XLPE
Individual shield	Aluminum foil-polyester tape with solid / 7 strands tinned copper drain wire for each pair or triad.
Overall shield	Aluminum foil-polyester tape with solid / 7 strands tinned copper drain wire
Sheath	PVC

Color code:
• Pairs are black white and alpha numeric coded;
• Triads are black white red and alpha numeric coded
Voltage: 300/500V 450/750V 600/1000V
Operating temperature with PVC insulation: Maximum 70°C
Operating temperature with XLPE insulation: Maximum 90°C
Standard: BS 5308

Other customized options:
• XLPE insulation
• coloured outer sheath
• non-shielded or overall shielded cables upon request
• Galvanized steel wire armoured type
• pairs are binded with Polyester tape and overall shielded with copper wire brandings
• other constructions available upon request

Product Tags:

multi pair instrumentation cable

individually shielded twisted pair cable

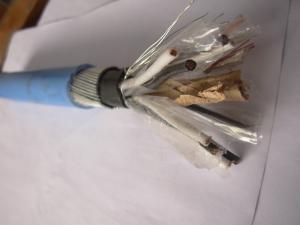

Copper Conductor Instrumentation Cable / 2 Wire Twisted Pair Cable BS 5308 Images
